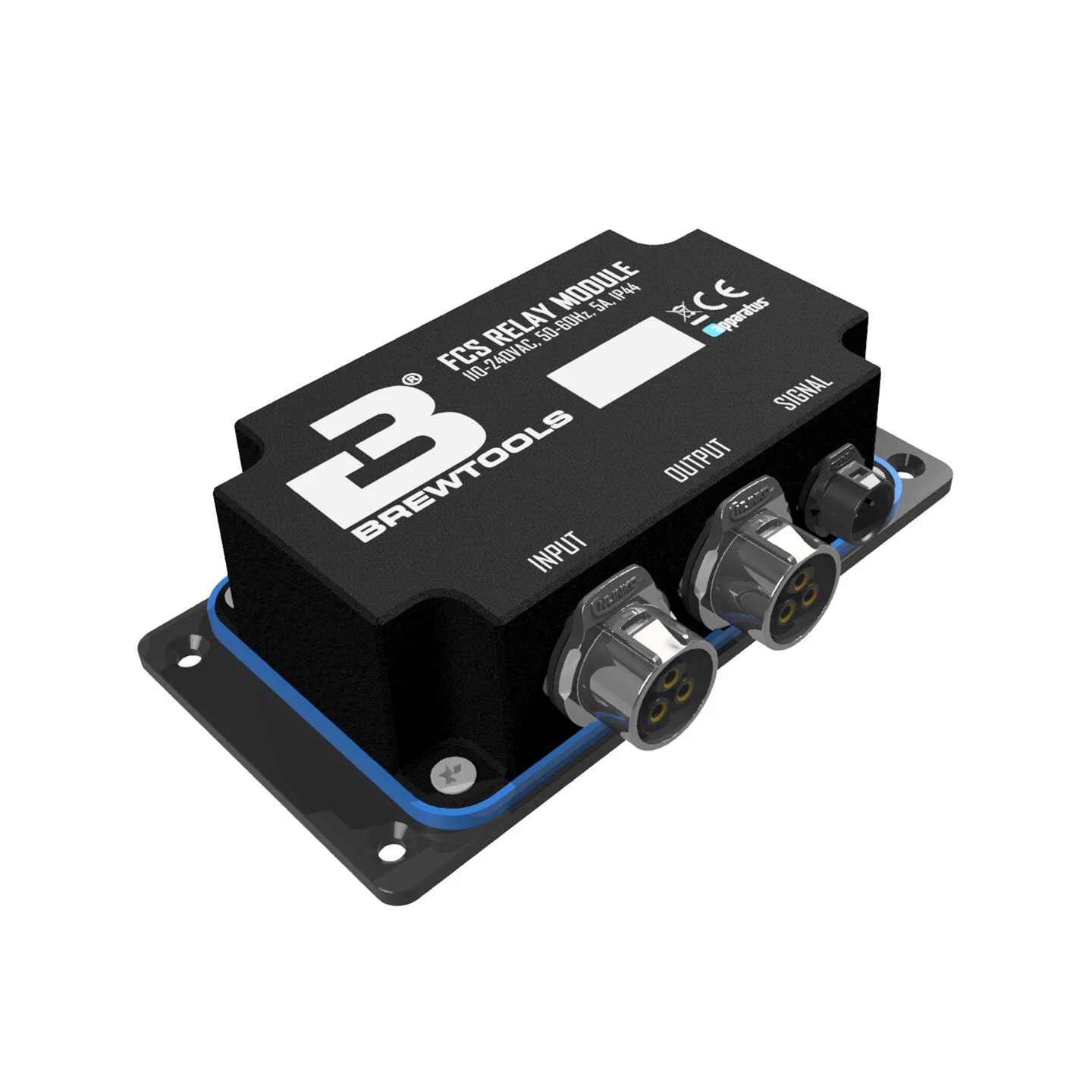

Relay Module for use with FCS. Specifically designed for small heating elements.

Control signal is 5V and the devices measures current draw.

The module has a 2-pole relay and several protective circuits for noise, over voltage etc.

For maximum safety, the device also has one fuse per phase.

Specifications:

• 110-240V AC, Max 5A
• Power in: LP20 3-pin male
• Power out: LP20 3-pin female
• Signal: LP12 7-pin
• Fuse: 2x 5x20 6.3A Fast Blow

Installation:

4 screw holes with 5mm diameter. Designed for countersunk screws.
