• Optimal Liquid Consistency: Magnetic-drive impeller evens out temperature gradients and maximizes hop utilization.
• Smart Integration: Fully adjustable via FCS Display Module with support for automated interval mixing in future profiles.
• Universal Compatibility: Fits most fermentation and brite tanks using tri-clamp adapters for flexible installation.

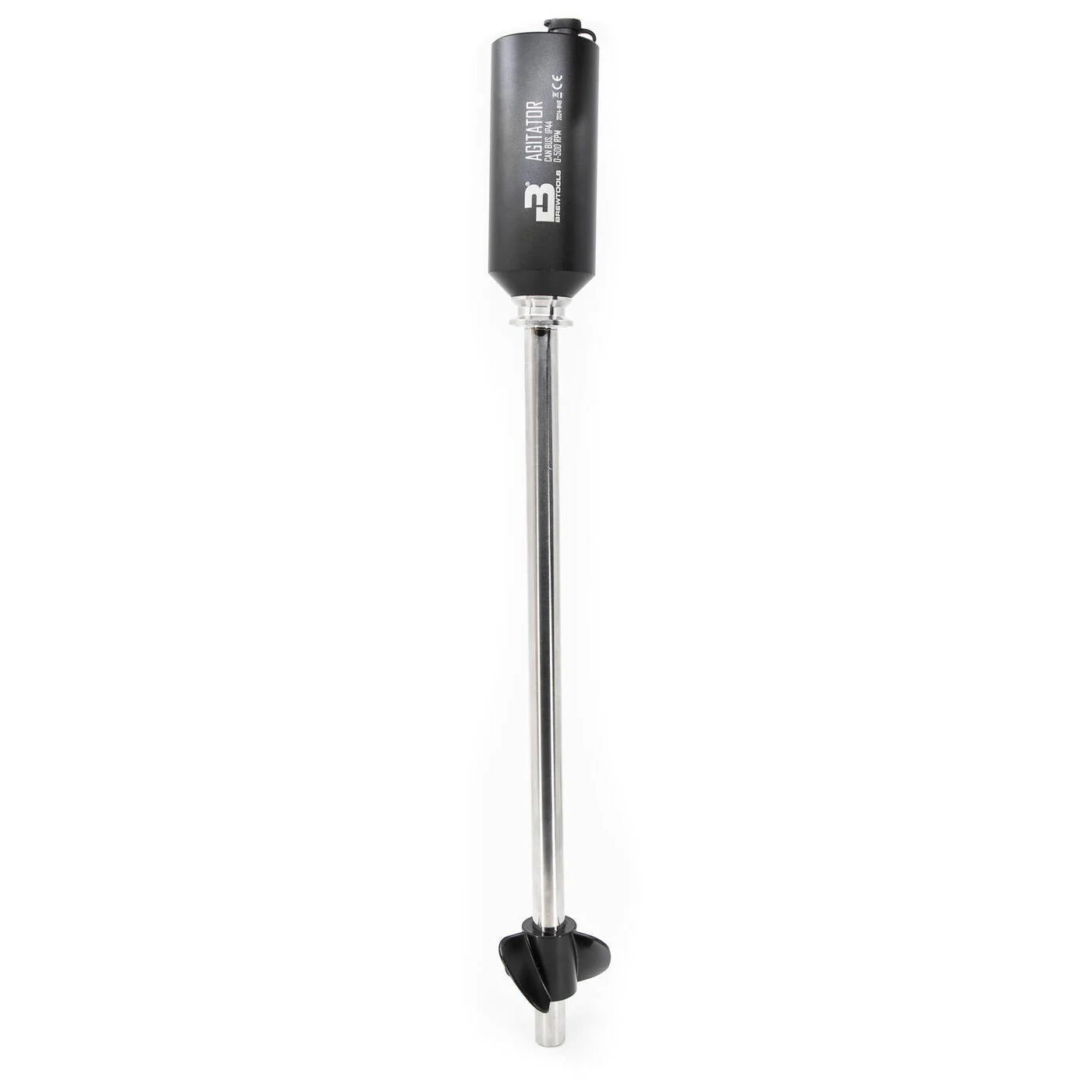

Agitator for FCS

Impeller based stirring system with magnetic drive for fermentation and brite tanks. The agitator mixes the liquid to even out temperature differences and can in many cases increase the utilization of hops and other additives. Speed is adjustable from the FCS Display Module. The agitator will also be able to be run at intervals in the upcoming advanced fermentation profiles in FCS.

The agitator can also be used without FCS with an adapter (BT1328) and a power supply (BT1324). The motor can be started with the button of top of the drive unit. Speed is controlled by pushing it multiple times and holding the button stops the motor.

Our agitator can be used on most fermentation and brite tanks with the help of adapters, as long as the impeller stays clear of the vertical wall.

Specifications:

• Motor: Brushed DC motor, 500 RPM, 24V, 0.5A
• Impeller material: POK, acid proof and food grade
• Flange: TC 34mm. Ø19mm minimum
• Length: 400mm / 14.9" from flange
• Connector: LP12 5-pin (CAN bus + 24V)

Note: For F40 and other smaller tanks, it might be necessary to lift the agitator to avoid touching the cone wall using a tee or short pipe.
